CS Series
Optex FA
- Rango de medición de -40 a 500ºC / 0 a 1000ºC
- Cuenta con el cabezal mas pequeño del mercado
- Resistente a alta temperatura: hasta 180ºC
- Maximo nivel de protección contra el agua.

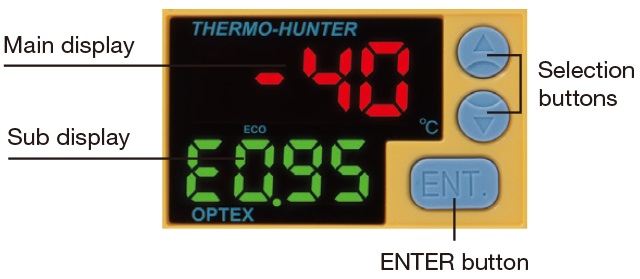

- Cuerpo compacto que permite buena visibilidad y operación.
Especificaciones
Ficha Técnica
| Model | Low-medium-temperature models (standard) |
High-temperature models (heat-resistant head) |
|||
|---|---|---|---|---|---|
| CS-30TAC | CS-40TAC | CS-30TAC-HT | CS-40TAC-HT | ||
| Measurement range | −40 to 500°C (−40 to 932°F) | 0 to 1000°C (32 to 1832°F) | |||
| Field of view | ø30/500 mm (22:1) |
ø40/500 mm (15:1) |
ø30/500 mm (22:1) |
ø40/500 mm (15:1) |
|
| Optics | Silicone lens | ||||
| Sensing element/ spectral response |
Thermopile/8 to 14 μm | ||||
| Response time | 150 ms/90% response | 150 ms/90% response | |||
| Accuracy*1 | –40 to 0°C (−40 to 32°F): ±3°C (5.4°F), 1 to 200°C (33.8 to 392°F): ±2°C (3.6°F), 201 to 1000°C (393.8 to 1832°F): ±1% of reading |
0 to 200°C (32 to 392°F): ±2°C (3.6°F), 201 to 1000°C (393.8 to 1832°F): ±1% of reading |
|||
| Repeatability | Up to 200°C (392°F): ±1.0°C (1.8°F), 201°C (393.8°F) or more: ±0.5% of reading | ||||
| Emissivity adjustment | 0.1 to 1.2 | ||||
| Display resolution | 1°C increments | ||||
| Analog output |
Output | 4 to 20 mA | |||
| Resolution | 0.5°C increments | ||||
| Accuracy | ±0.5% or ±1.0°C (1.8°F) | ||||
| Update time | 10 ms | ||||
| Allowable load | 250 Ω | ||||
| Impedance | 47 Ω | ||||
| Control output | Photo MOS FET × 2 (Transfer contact × 2) | ||||
| Capacitive load | 300 mA/30 VDC or less | ||||
| Interface | Digital output | ||||
| Functions | Teaching function: 2 points, Response time selection (DELAY) function: 1 (0.15 sec.) to 200 (approx. 10 sec.), Output scaling function |
||||
| External input | Bank function: 4 banks, Synchronous input trigger function, External trigger function, Wave trigger function |
||||
| Degree of protection | Sensor head: IP69K, Amplifier: IP40 | ||||
| Vibration resistance | 10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions | ||||
| Supply voltage | 12 to 24 VDC ±10% | ||||
| Current consumption | 120 mA (at max. load) / 80 mA (in Eco mode) | ||||
| Ambient temperature | Sensor head: 0 to 100°C (32 to 212°F), Amplifier: 0 to 65°C (32 to 149°F) |
Sensor head: 0 to 180°C (32 to 356°F), Amplifier: 0 to 65°C (32 to 149°F) |
|||
| Ambient humidity | 35 to 85% RH (no condensation) | ||||
| Storage temperature | 0 to 70°C (32 to 158°F) | ||||
| imensions | Sensor head: M12 (ø14) × 34 mm, Amplifier: 35 × 52 × 38.5 mm | ||||
| Weight | Sensor head: Approx. 100 g (including 3 m cable), Amplifier: Approx. 200 g (including 2 m cable) | ||||
| Material | Sensor head: SUS, Amplifier: ABS, Sensor cable: PVC (low-medium-temperature models) / Silicone rubber (high-temperature models) |
||||
